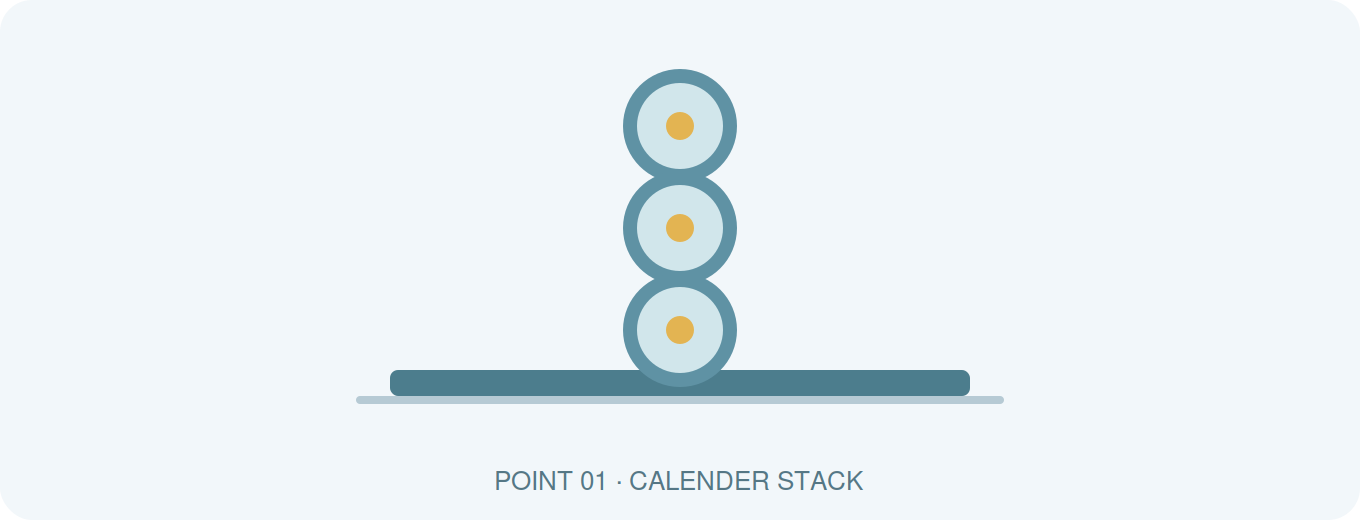

Calender Stack

Lubricant selection for calender stack in paper manufacturing.

Mobil

Roll bearing circulation circuit
SHC PM / DTE PM

Hydraulic loading system, where fitted
DTE 10 Excel / DTE 20 family

Separate enclosed drive gearbox
SHC 600 / Mobilgear SHC XMP / Mobilgear 600 XP

Shell

Roll bearing circulation circuit
Paper Machine S3 M / S2 M; Morlina S4 B where approved

Hydraulic loading system, where fitted
Tellus S2 MX / S4 VE

Separate enclosed drive gearbox
Omala synthetic gear-oil family

TotalEnergies

Roll bearing circulation circuit
MISOLA range, matched to wet- or dry-end duty

Hydraulic loading system, where fitted
AZOLLA / EQUIVIS

Separate enclosed drive gearbox
CARTER SH

Caltex

Roll bearing circulation circuit
Clarity Machine Oil — confirm UAE supply and OEM approval

Hydraulic loading system, where fitted
Rando HD

Separate enclosed drive gearbox
Meropa EliteSyn WL

Selection notes

Confirm roll loading, operating temperature and whether bearings and gears share a reservoir. Mobil also lists Glygoyle 30 for specific duty: PAG oils require separate OEM selection and must not be mixed with mineral or PAO oils.

Product families for technical selection, not a direct interchange chart. Confirm the exact grade, current UAE product data sheet, OEM approval and lubricant compatibility before use.
